Imagery (Week Ending 11 Jul 03)

(Week Ending 28 Jul 03)

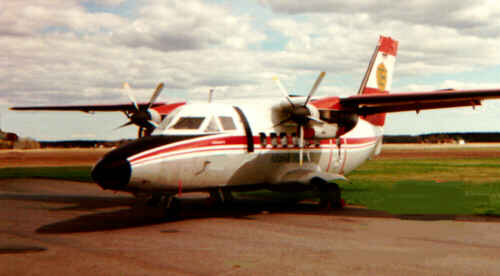

LET 410 fatal accident photos will eventually appear at this link (San Cristobal Venezuela on 13 Jul 03 at 1141Local)

Fatal to four passengers out of the 8 pax and two crew on board. Departed La Carlota and collided with terrain during approach to San Cristobal.


07 Jul 03

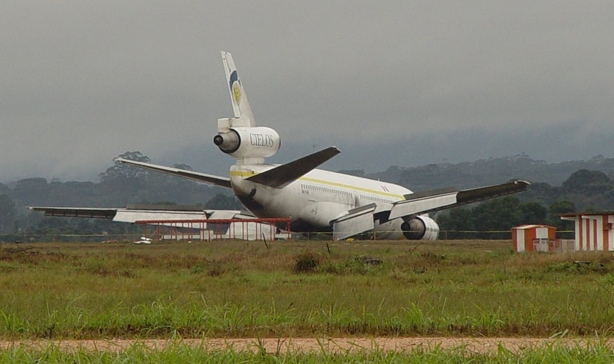

DC-10-30F of Cielos del Peru (reg: OB-1749)

aquaplaned and departed the 220m runway at Curitiba Brazil as flt CIU4855



Localizer antenna damaged, nose-gear collapsed, one engine damaged

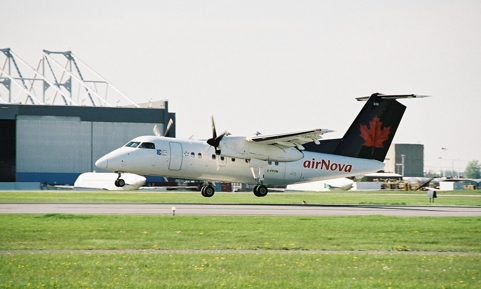

DHC-8 of JAZZ Air reg:C-FPON

JZA7998 lowered gear manually after hydraulics failure and lost n/wheel steering during its no-flap landing roll-out 15L Toronto Canada.

#1 hyd system failed due leak in brake unit. #2 system failure was due to a sticking brake shuttle valve.







Unmanned Scientific balloon launched from Svalbard Norway (Andoya Rocket Range) continues to drift around Alaska/Canada.

Was expected to remain aloft for weeks in the airspace bounded by 29K to 36K feet. However Flt ASA102 (737-400 of Alaskan) reported passing close by a large balloon at 6500ft on  28 Jul at 2358Z whilst enroute Anchorage to Vancouver.





Arctic LDB Program Development

Main Daily Status Report Online Instrumentation

Last update: 07/14/2003 18:02:56

The Italian Space Agency (Agenzia Spaziale Italiana, ASI) in a joint effort with Andøya Rocket Range (ARR), anticipates launching a total of 6-7 “Pathfinder” balloons from Svalbard (Norway) during the 2003 summer.

Campaign information

Launch window: June 15 – July 20, 2003
Launch site: Longyearbyen Airport, Svalbard
No of Balloons: 6-7
Balloon size: 1950 m3 and /or 3600 m3
Staff: ARR: Kjell Bøen, Hallstein Thomassen, Petter Dragøy
USA/Italy: Steven Peterzen
Italy/ASI: Antonio Leonardio
Status: Campaign currently ongoing

Balloons launched

Date

Time

Balloon id

Balloon type

15.06.2003

16:36:00 UT

PATH-1 Pathfinder
16.06.2003

19:37:00 UT

PATH-2 Pathfinder
19.06.2003

19:30:00 UT

PATH-3 Pathfinder
09.07.2003

10:41:00 UT

PATH-4 Pathfinder
12.07.2003

10:50:00 UT

PATH-5 Pathfinder
12.07.2003

15:50:00 UT

PATH-6 Pathfinder

Campaign description



The balloons will carry a payload of a GPS/Argos transmitter for tracking. This campaign is designed to prove concept for launching larger Long Duration Balloons (LDB) in the future from this high latitude location. These small (1950 cubic meters and 3600 cubic meters) balloons reach an altitude of +/- 5mb (127kft) and will circumnavigate the polar region between 78 and 80 deg. N.

Making use of the Pathfinder balloons with a GPS/ARGOS payload for tracking purposes, this investigation will obtain a trajectory showing the stratospheric circulation pattern of stratospheric winds, diurnal excursions, and potential termination/impact locations for the future LDB flights.

Stratospheric wind analysis and it’s impact on the balloon trajectories has been constructed for the past three years (2000,2001,2002). The wind data analysis for each year spans a period from May through August.

The analysis data utilized for these procedures came from the European Center for Medium Range Weather Forecasting (ECMWF). A complete set of ECMWF data (for each degree of latitude and longitude in the area of interest), was available every 6 hours. During the three year period we have constructed the geopotential altitude at 5 mb.; Fig. 1,2,3, show the typical isobaric behaviour in the polar regions.

The ground track trajectory was simulated through a 20 day cycle by using a linear interpolation in space and time with a step of 0.5 hours. A latitude of less than 68º was an additional condition for the end of the propagation (Fig. 4,4,6 show the simulated balloon trajectories using actual data).

from this link

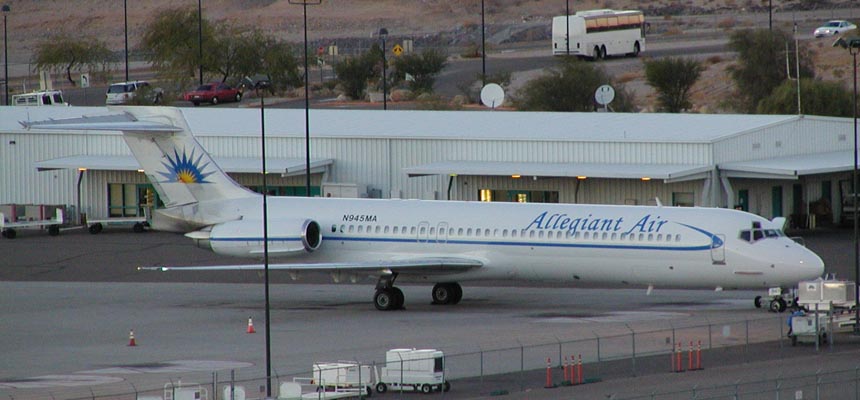

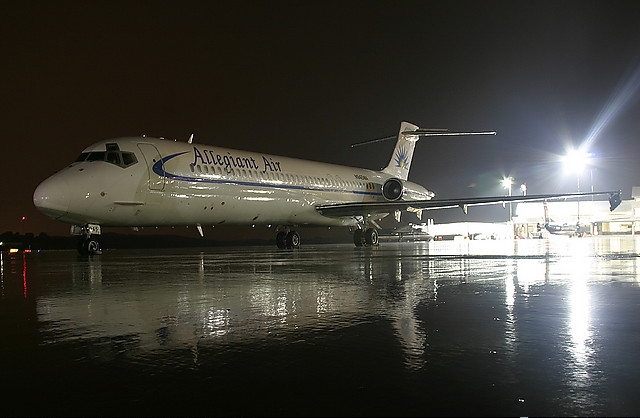

N945MA shows damage to left wing tip (top) after striking Jetway with wingtip at Tri-Cities Regional Airport TN/VA


N945MA (cn 49725/1552) Originally delivered to Midway Airlines as N802ML on 03/30/1989. Then it flew with Ford Motor Company as VR-BOP and then as VP-BOP. Miami Air picked it up after that and re-registered it as N945MA. Allegiant picked up the plane on 1/25/02.

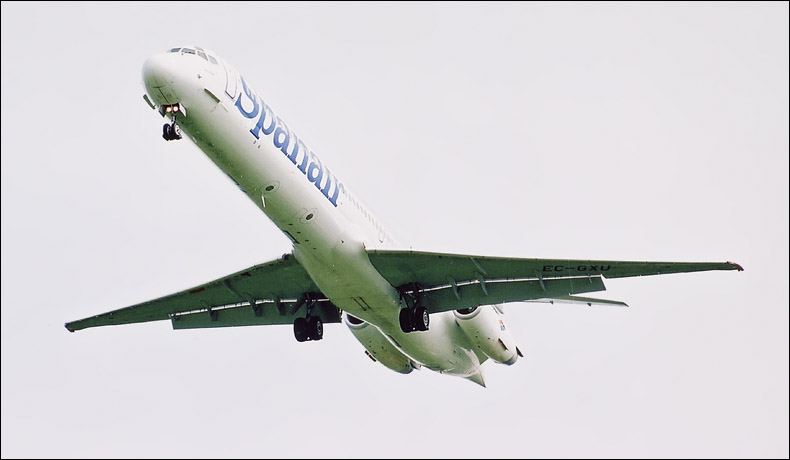

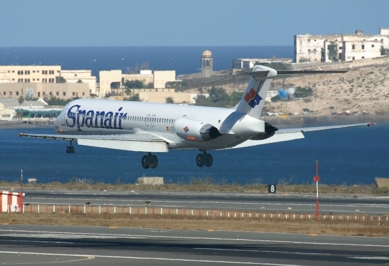

    MD-83 (EC-GXU) of Spanair

will be out of service for about 8 weeks after the landing gear collapsed in a hangar during maintenance at Kastrup Regional Airport Copenhagen Denmark

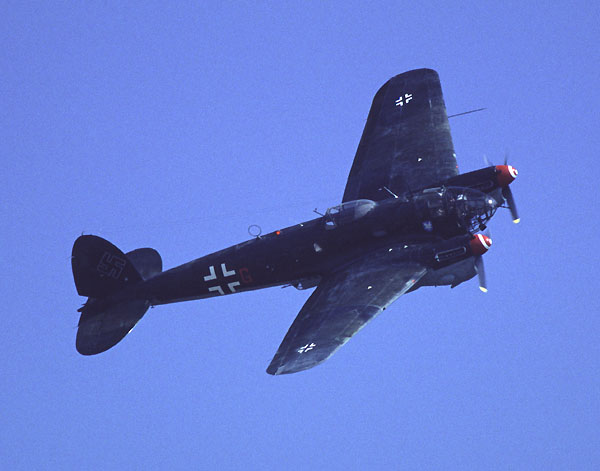

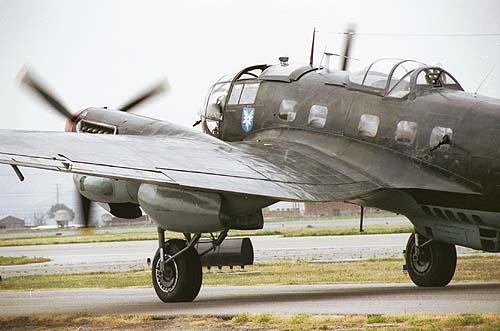

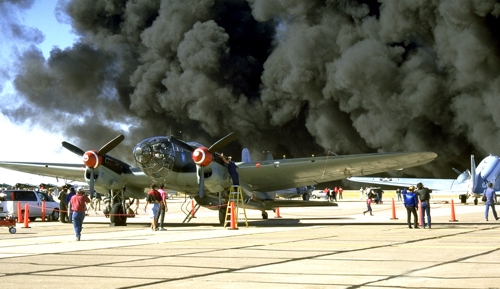

Heinkel Replica (CASA 2.111) reg N72615 of American Airpower Heritage crashed during forced landing after losing left engine on approach to runway 26 at Cheyenne, Wyoming

Both crew-members were killed.



Fire broke out in the left-hand engine of this MD-82 of Dutch Caribbean Airlines forcing it to circle for 25 minutes (after engine shutdown) in order to reduce weight for landing back at Curacao.

Aircraft was enroute to St Maarten, Dutch Antilles, Eastern Caribbean.

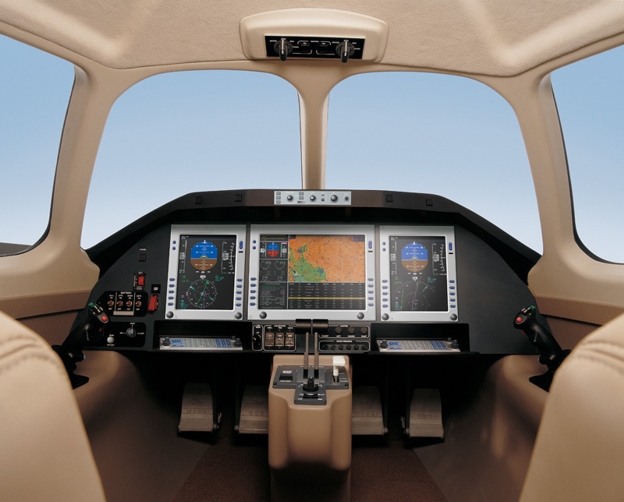

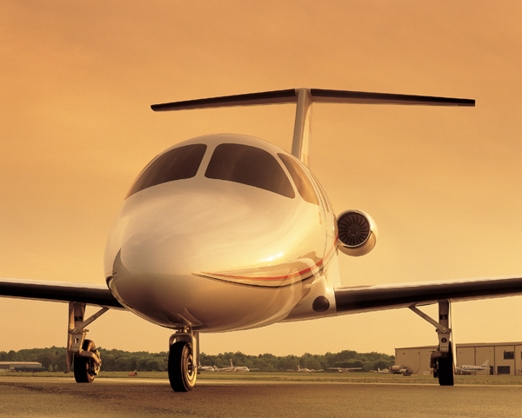

Eclipse 500 prototype reg ECP101 collapsed its right main landing gear after touchdown at Albuquerque during a developmental test-flight. Wing-tip undersurface and flaps were damaged when the actuator casting fractured. Second MLG incident for the Eclipse 500 (for unrelated causes).
